OneControl Pro – LED Controller (WiFi & Bluetooth)
SKU:102164
In stock
Regular price
€49,00
€49,00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Description

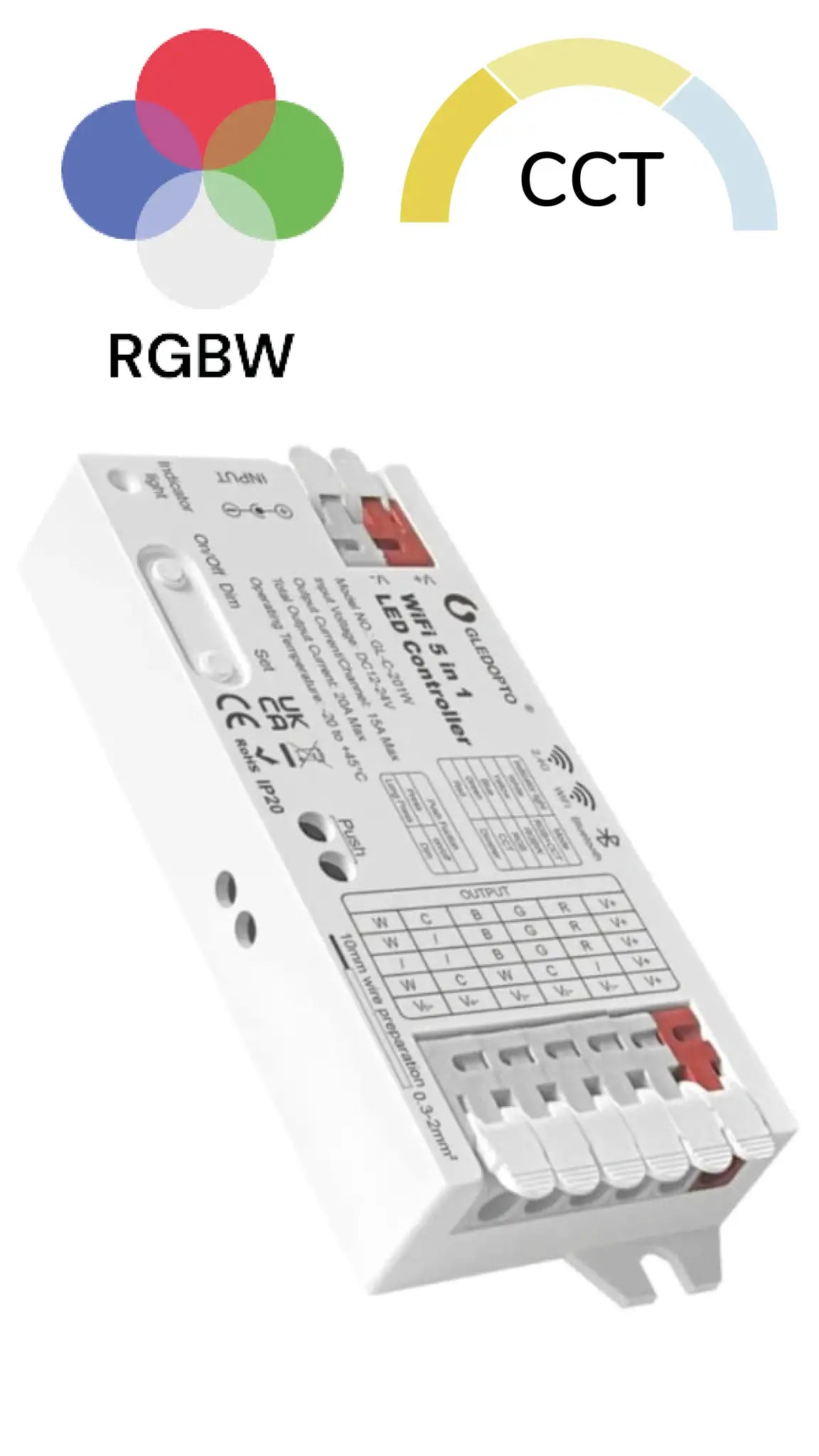

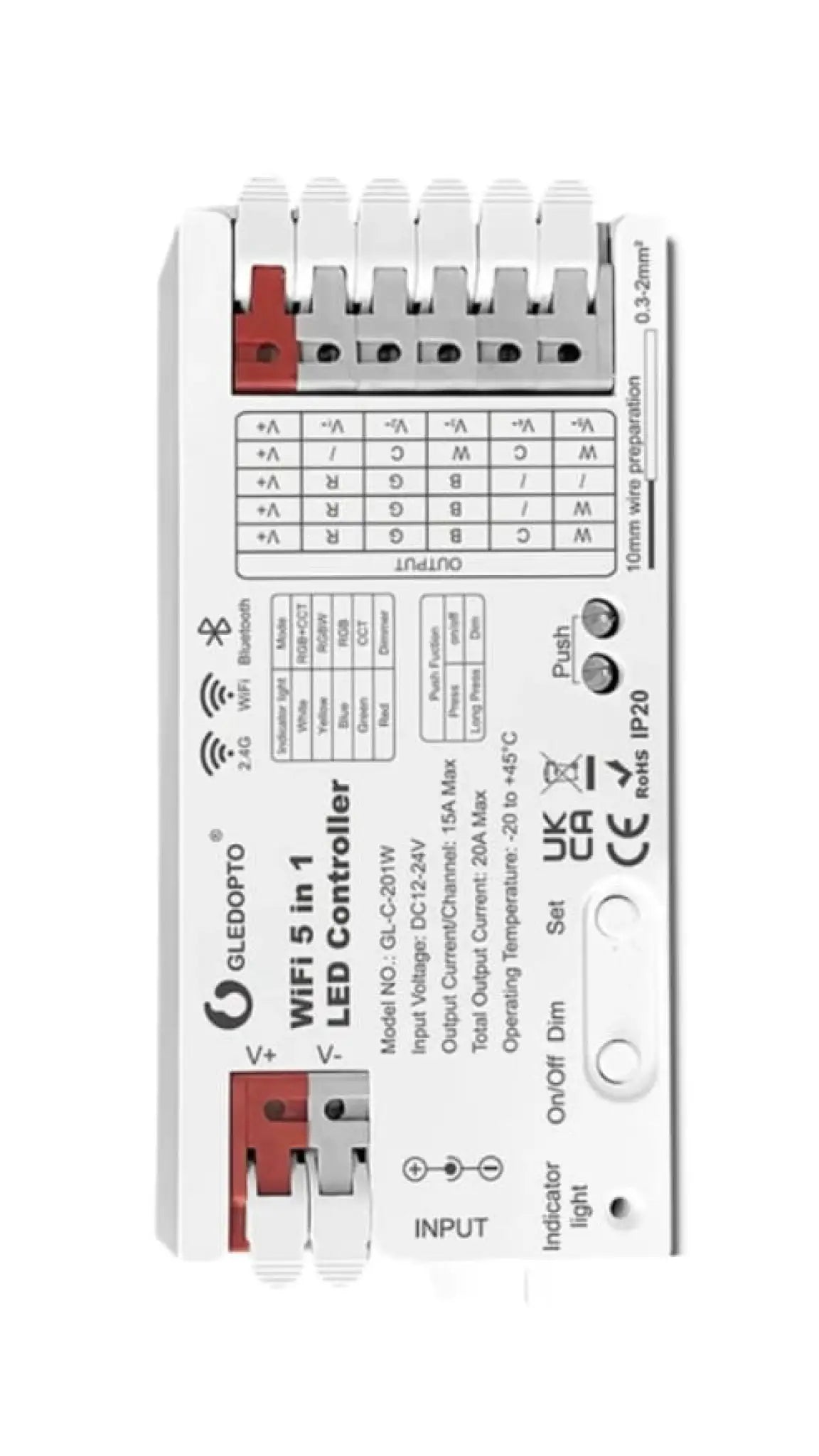

OneControl Pro – WiFi & Bluetooth controller for LED sheets
The OneControl Pro is a versatile LED controller for Slate-Lite LED sheets and is suitable for CCT, RGBW and other LED systems. Control is via WiFi and Bluetooth, enabling convenient operation of the connected LED sheets – ideal for backlit stone surfaces with Slate-Lite Translucent.
With the controller, light color, color temperature, brightness and lighting moods can be adjusted flexibly. This allows backlit stone walls, light panels, furniture, counters, wall claddings, showrooms or restaurant projects to be precisely adapted to the room, application and desired atmosphere.
The OneControl Pro operates with 12–24 V DC and is designed as a 5-channel PWM controller for different LED configurations. With a maximum output of 480 W, it is suitable, depending on the LED sheet, for up to 11 CCT LED Flex Sheets of 40 W each or up to 10 RGBW LED Sheets of 45 W each. For clean planning, we recommend always coordinating the controller, power supply and LED sheets according to the specific installation.
A remote control is not included with this item. Operation is standard via WiFi and Bluetooth. A suitable remote control can be purchased separately if required.
Technical data
- Voltage: 12–24 V DC
- Max. output: 480 W
- Output: 5 channels / PWM
- Output current: 20 A
- Control: WiFi & Bluetooth
- Standby consumption: 2 W
- Material: plastic
- Suitable for: CCT, RGBW and other compatible LED systems
- Suitable for: up to 11 CCT LED Flex Sheets or up to 10 RGBW LED Sheets
- Application area: indoor use
- Remote control: not included, available separately
The LED Sheets have been specially developed for the uniform backlighting of translucent surfaces and are ideal for use with Slate-Lite Translucent. The genuine stone veneer allows light to shine through the natural stone surface, making structures, colours, and veining appear especially vibrant.
This creates backlit stone walls, light panels, counters, furniture, or decorative back walls with a high-quality natural stone effect. Depending on the desired lighting mood, you can choose between CCT light for adjustable white tones or RGBW light for coloured accents with additional white light.
The LED Sheets are ultra-flat, flexible, and self-adhesive on the back. This makes them easy to position on suitable substrates and also suitable for individual shapes or gentle curves. Multiple LED Sheets can be combined for larger surfaces.
The format of 490 x 245 mm (approx. 19 5/16" x 9 5/8") makes it easier to plan both small and larger illuminated areas. If required, the sheets can be cut to size, allowing the lighting to be adapted to wall surfaces, furniture, shopfitting elements, or custom shapes.
To operate the LED Sheets, you need the appropriate accessories. Depending on the system, these include a suitable power supply and the matching controller. Depending on the version, control is conveniently handled by remote control or Bluetooth app.
When planning, please make sure to select accessories and LED Sheets that match the chosen lighting option: CCT accessories for adjustable white tones or RGBW accessories for coloured lighting moods with additional white light. The wiring diagram and data sheet provided with the respective accessory products help with the correct configuration and connection of the components.
Illuminated natural stone is created by combining modern LED surface lighting with translucent natural stone veneer. The LED Sheet is placed behind the Slate-Lite Translucent stone veneer and provides uniform illumination across the surface.
As the stone surface is 100% natural, every surface remains unique. At the same time, the backlighting highlights the depth, structure, and colour effect of the stone particularly clearly.
The result is not a stone imitation and not a stone-look surface, but genuine natural stone with an integrated lighting effect.
